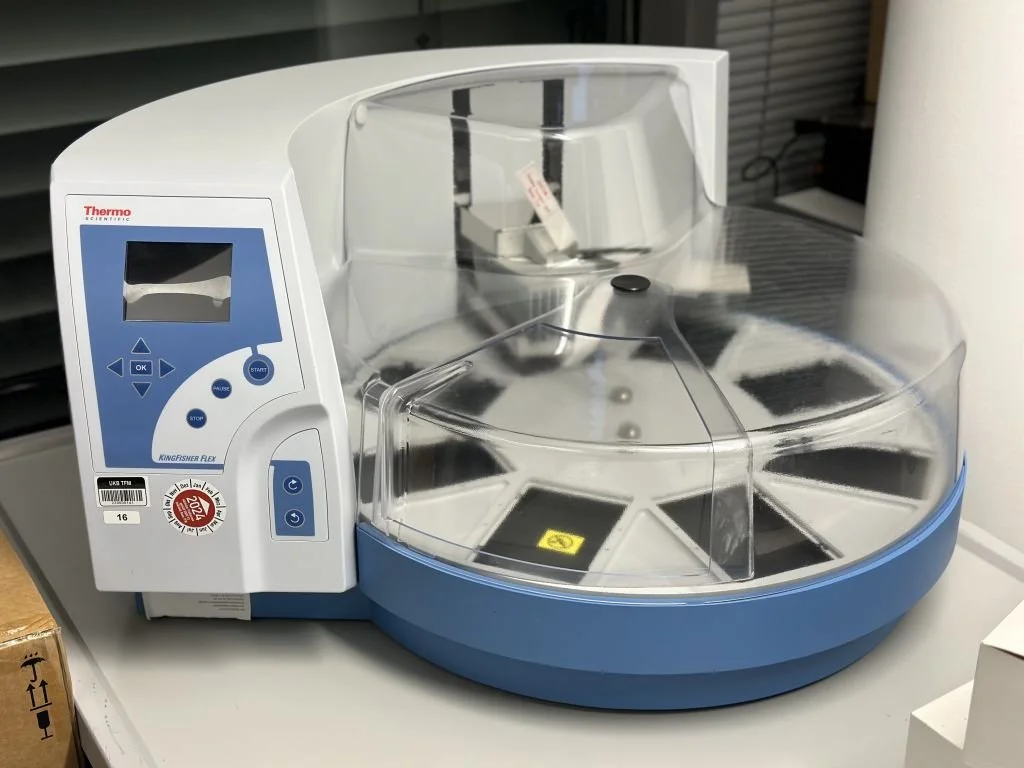

KingFisher Flex

    • DNA/RNA, protein or cell purification from virtually any source.

    • 96 Magnet Heads

    • Fully Automated System

    • Process up to 96 samples in less than 20 minutes

    • Volume Range: 50–1,000 µL

    • Thermo Scientific BindIt Software

    • Open and Flexible System – use any magnetic particle-based kit based on different application needs.

    • Typical Applications: Genomics and Poteomics, Target identification, Veterinary assays, Biomarker discovery, Quality control and Forensics.

    • PC, Monitor, Keyboard and Mouse included

    • All assorted accessories included

  • 1 Week International Delivery available

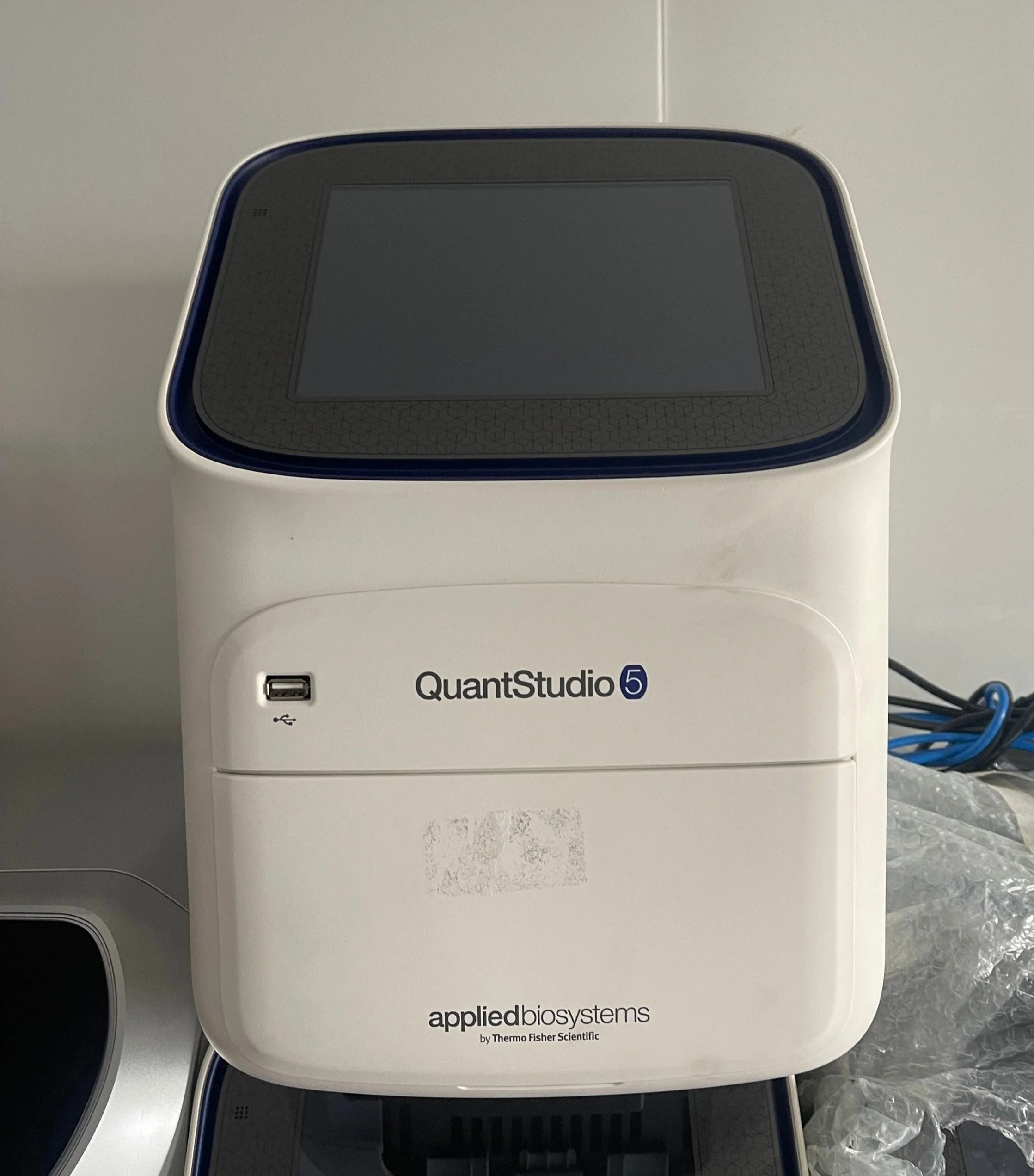

QuantStudio  5 Real-Time PCR System

  • Sample Capacity(Number of Wells):

    • 96 wells, 0.1 mL block

    • 384 wells

    Reaction Volume:

    • 10–30 µL for 96-well 0.1 mL block

    • 5–20 µL for 384-well block

    Excitation Source:
    Bright white LED

    Filters or Colors:
    6 decoupled filters with up to 21 combinations for 96-well system

    Excitation/Detection Range:

    • 450–680 nm

    • 500–730 nm

    Multiplexing:
    Up to 6 targets with 21 filter combinations

    Heating/Cooling Method:
    Peltier
    Max block ramp rate:

    • 9.0°C/sec for 0.1 mL block

    • 6.0°C/sec for 384 well block

    Average Sample Ramp Rate:

    • 4.81°C/sec for 0.1 mL block

    • 2.92°C/sec for 384 well block

    Temperature Uniformity:
    0.4°C

    Temperature Accuracy:
    0.25°C

    Run Time:
    <35-minute runs

    Dye Compatibility:

    • FAM/SYBR Green

    • VIC/JOE/HEX/TET

    • ABY/NED/TAMRA/Cy3

    • JUN

    • ROX/Texas Red

    • Mustang Purple

    • Cy 5/LIZ

    • Cy 5.5

    Chemistry Cap:
    Thermolities Fast/Standard

    21 CFR Part 11 Compliance:
    Yes, with no additional fees

    Detection Sensitivity:
    1 copy

    Sensitivity:
    Detect differences as small as 1.5-fold in target quantities in singleplex reactions

    Dimensions:
    11 x 20 x 18 inches

    Weight:
    70 lbs

  • 1 Week International Delivery available

Mic qPCR Cycler

  • Dimensions

    • Height: 130 mm (265 mm lid open)

    • Width: 150 mm

    • Length: 150 mm

    • Weight: 2.1 kg

    Thermal Performance

    • Temperature Accuracy: ±0.25°C

    • Temperature Uniformity:

      • ±0.05°C (MIC-4 + HRM)

      • ±0.10°C (MIC-2 and MIC-4)

    • Ramp Rates:

      • Heating: 4°C/s

      • Cooling: 3°C/s

    • Temperature Input Range: 35 – 99°C

    Optical Detectors

    • Photodiode per channel

    Excitation Sources

    • High power LED for each channel

    Channels

    • Green

      • Ex 465 nm / Em 510 nm

    • Yellow

      • Ex 540 nm / Em 570 nm

    • Orange

      • Ex 585 nm / Em 618 nm

    • Red

      • Ex 635 nm / Em 675 nm

    Acquisition Time

    • 1 second

    Reaction Tubes

    • Samples per Instrument: 48

    • Reaction Volume Range: 5 – 30 µL

    Communication

    • Type: USB 2.0 or Bluetooth

    PC Requirements

    • Operating System: Windows 8 (32 bit)

    • Processor: Intel i5 2.4 GHz or equivalent

    • RAM: 4GB

    • Hard Drive: 1GB

    • .NET Framework: 4.5

    Operating Environment

    • Temperature: 18 – 30ºC

    • Relative Humidity: 20 – 80%

    Electrical

    • AC Input: 100-240 VAC, 50/60 Hz, 4.0 A

    • Compatible with any country's standard plugs/outlets

  • 1 Week International Delivery available

QuantuMDx Q-POC

    • Weight: 8 kg

    • Dimensions: (W x H x D) 24 x 20 x 30 cm

    • Operating languages: Multilingual

    • Samples preparation: Direct-to-PCR

    • Amplification & detection: Qualitative RT-PCR

    • Operating humidity: Up to 95% (non-condensing)
      Operating temperature: 5 – 45 °C

    • Fluorescence detection channels: 6

  • 1 Week International Delivery available
