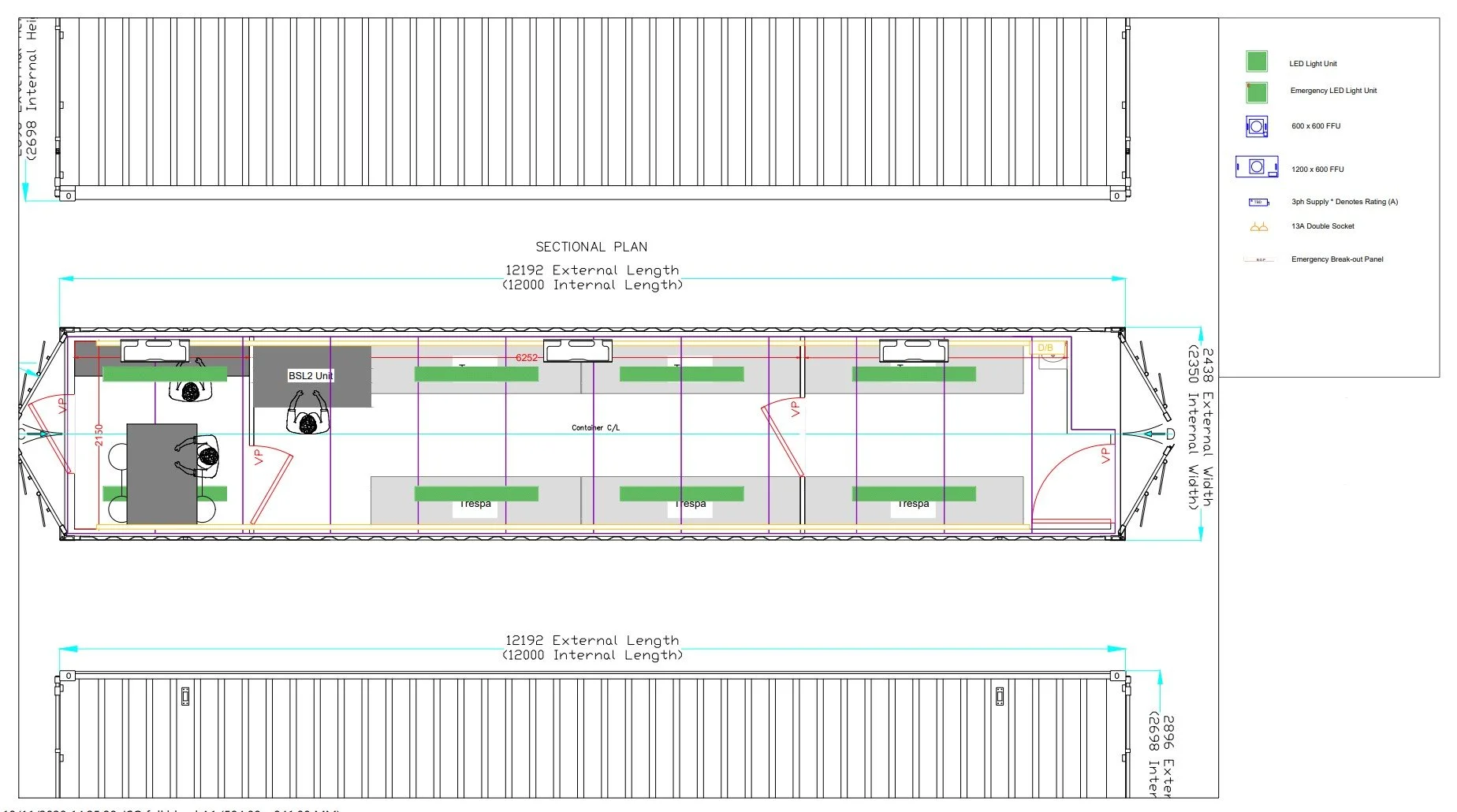

BSL2 Container Laboratory

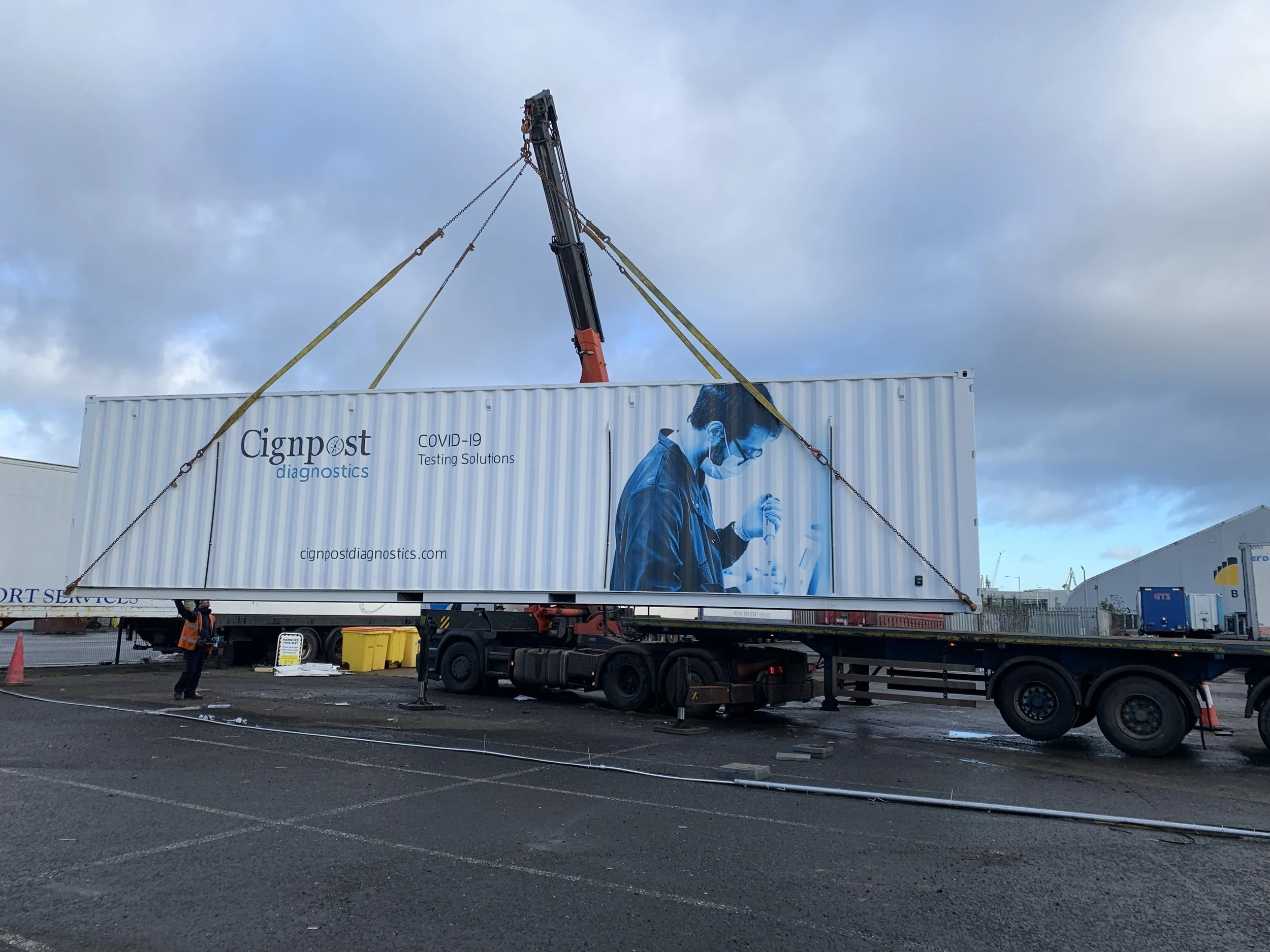

• 40ft high container 12,000mm (L) x 2,400mm (W) x 2,900mm (H) external dimension with double doors either end with lockable box and side loading forklift pouches.

• 5,750mm (L) x 2,150mm (W) x 2,700mm (H) BSL2 Lab Space 1.

• 3,000mm (L) x 2,150mm (W) x 2,700mm (H) BSL2 Lab Space 2.

• 1,950mm (L) x 2,150mm (W) x 2,700mm (H) BSL2 Lab Space 3.

• 1,000mm (L) x 1,050mm (W) x 2,700mm (H) Change Area.

• 1,000mm (L) x 1,050mm (W) x 2,700mm (H) Plant Room.

• Walls & Ceilings constructed from modular Cleanroom panels, all joints silicon sealed.

• 4 off Powder Coated Steel Personnel Single Doors.

• Vinyl floor flat laid throughout, all joints hot welded.

• 12 off 13-amp sockets flush mounted around the room perimeter, safety isolation transformer, distribution board and 32-amp single phase male power connection socket for site hook-up.

• 10 off LED lighting surface mounted.

• 3 off 2kW air conditioning cassette linked to 1 external condenser mounted in plant room.

• 8 off 2,500mm (L) x 600mm (W) x 1,000mm (H) Trespa Benches on Aluminium Frames.

• Mobile Sink unit with hot and cold water, effluent drainage containers and motion sensor taps.

WALLS

• System: GT Shell Plus

• Perimeter (m): 32.8

• Panel Height (m): 2.2

• Total Panel Area (m²): 68.8

• Colour: RAL 9003 (White)

CEILING

• System: GT Shell Plus

• Area (m²): 26.4

• Perimeter (LNM): 32.8

• Finish: Silicon Seal

• Colour: RAL 9003 (White)

DOORS

• System: GT Access Lite

• Quantity: 4 Single

• Clear Opening: 840mm (W) x 1890mm (H)

• Structural Opening: 940mm (W) x 1990mm (H)

• Colour: RAL 9016 (Blue)

FLOORING

• System: GT Deck Plus

• Area (m²): 26.4

• Coving (LNM): 32.8

• Finish: Back Rubber Capping

• Coved: Flat Laid

• Colour: Sapphire Blue

FILTRATION

• Fan Filter Units: GT Air Plus

• Quantity: Not Included For

• Dimensions: N/A

• Filters: N/A

• ACPH: Minimum of 4 per hour

• Total Volume: N/A

HVAC

• System: 3 off Wall Mounted Cassette

• Temperature °C: 21 +/-3°C +/-3°C

• Relative Humidity %: N/A

• External Condition: -5°C to 35°C

• Design Principle: View 3D Model

ELECTRICAL

• Small Power: 12 off 13-amp double Stainless Sockets

• 3-Phase: N/A

• Containment: Conduit concealed behind wall panels

• Distribution: 12-way

• Board: Lighting: Ansell Oxford

• Lux Levels: 500 at Bench Level average

• Door Interlocks: N/A

• Monitoring: Magnehelic Gauges

UTILITIES

• Compressed Air: Not Required

• Extraction: Not Required

• Vacuum: Not Required

• Nitrogen: Not Required

• Purified Water: Not Required
